We are Raghav Udyog Engineering & Solutions

Pumps and Valves Repairs

Also known as vertical pumps or line shaft pumps, are centrifugal pumps commonly used to transport water from deep underground pits or wells. They consist of a motor, discharge head, one or more pipe columns, line shaft, pump shaft, multiple bowls, impellers, and a suction bell.

Vertical Turbine Pump

A vacuum pump's main function is to change the pressure in a contained space to create a full or partial vacuum either mechanically or chemically. Pressure will always try to equalize across connected regions as gas molecules flow from high to low to fill the entire area of that volume.

Vaccum Pump Valves

Fluid enters the rapidly rotating impeller along its axis and is cast out by centrifugal force along its circumference through the impeller's vane tips. The action of the impeller increases the fluid's velocity and pressure and also directs it towards the pump outlet.

Juice Pump

A split casing pump is a type of pump whereby the casing is split either perpendicular or radially across the shaft to allow easy access to internal pump parts for maintenance. The term is widely used to refer to a double suction pump / pipeline pump where an impeller which is designed for producing high volume flows.

UP Pump (Split Case Pump)

A multistage pump finds applications across a varied range of industry verticals requiring the movement of fluids. For example, High-rise buildings require higher pressure to deliver water to their overhead tanks. Multistage pumps are widely used for such applications

Multistage Pump

A split casing pump is a type of pump whereby the casing is split either perpendicular or radially across the shaft to allow easy access to internal pump parts for maintenance. The term is widely used to refer to a double suction pump / pipeline pump where an impeller which is designed for producing high volume flows.

UP Pump (Split Case Pump)

A multistage pump finds applications across a varied range of industry verticals requiring the movement of fluids. For example, High-rise buildings require higher pressure to deliver water to their overhead tanks. Multistage pumps are widely used for such applications

Multistage Pump

Refurbishment and Maintenance

Coupling

Coupling is a component used to connect a drive shaft and a driven part, for example, a motor shaft and a ball screw for the purpose of transmitting the torque.

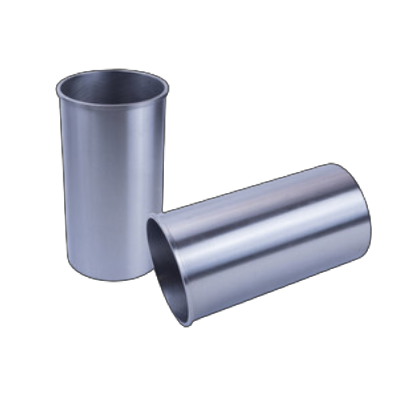

Shaft Sleeves

Shaft sleeves are cylindrical metal tubes designed to protect pump shafts from erosion, corrosion, and wear at critical points, such as at the stuffing box.

IMG-20230317-WA0038-removebg-preview

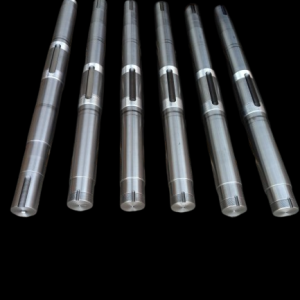

Shafts

The shaft is used for to convert energy from the motor into the end use application. Precision pins and shafts operate as a function of speed vs torque.

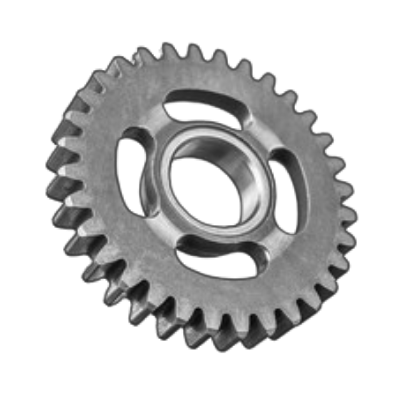

Gears

Gears are used to control the speed & torque of power sources and are essential to societal progress. It converts and transmits torque from motors & engines.

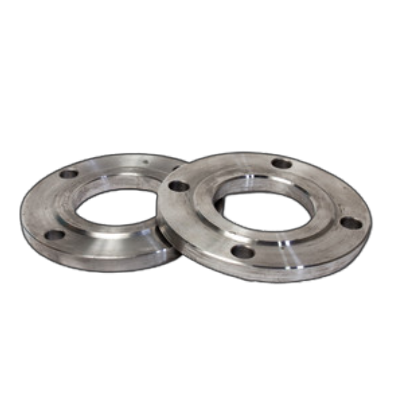

Flange

The motor flange adapter is responsible for to connect pipes with each other, to valves, to fittings, and to specialty items such as strainers and pressure vessels.

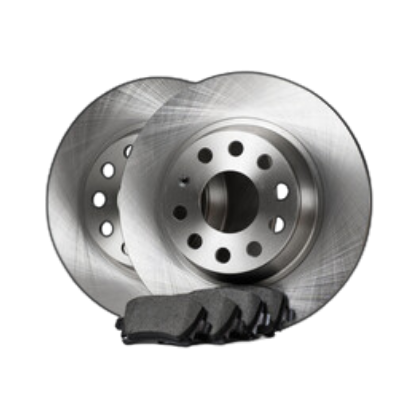

Wheels

Wheel uses include lifting heavy objects, moving people quickly, and moving parts of a complex machine.  The wheel and axle consists of a round disk, known as a wheel.

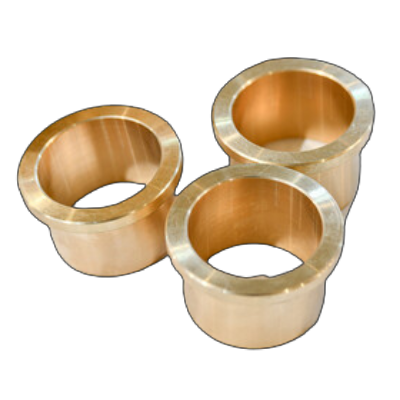

Gun metal bush

Gunmetal Bushes are precision engineered using high grade metals and alloys. These are extensively used in pump castings and valve fittings.

Gun metal rings

It improve mechanical performance by transferring the electrical power and/or signals from the stationary part of the machine out to where it is needed on the rotating part.

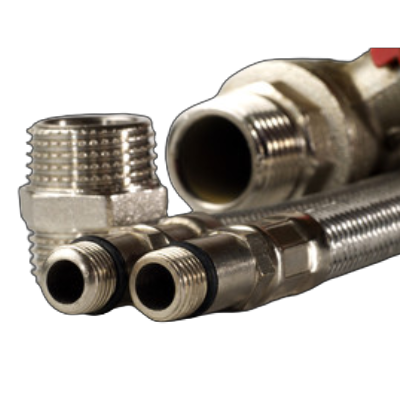

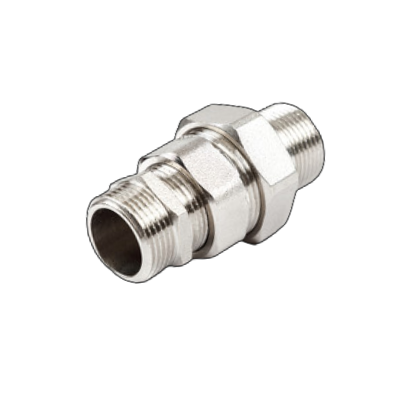

Nipple

A lubrication nipple is a small connector fitted to a wheel bearing via a screw thread. It is used to feed the required lubricant into the bearing so that the device or machine keeps running smoothly.

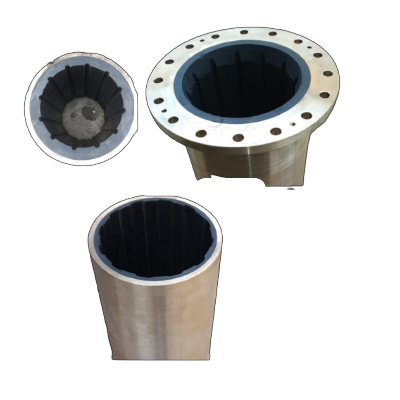

White metal bush

Under normal operating conditions allow large momentary overloads, are able to handle lubricant problems & if misalignment occurs, are able to conform & compensate.

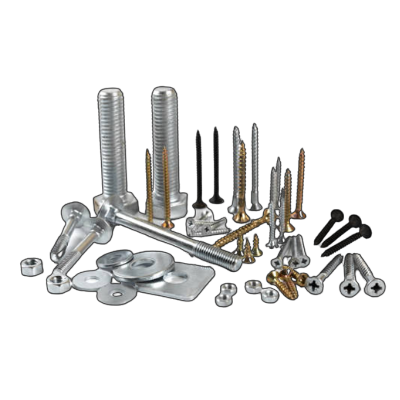

Nuts, bolts & Washer grab screw

Washer used in conjunction with screw fastener, usually serves either to keep the screw from loosening or to distribute the load from the nut/bolt head over a larger area.

bearing-ge5a56f65c_1920-removebg-preview (1)

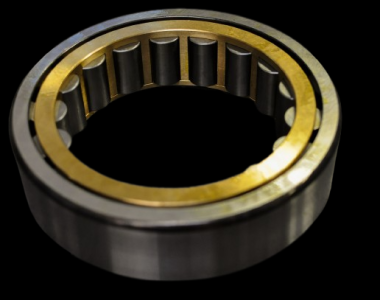

Brass Bearings

A bearing is used to permit a rotary motion and transmit the power between machine parts. Rolling element bearings allow relative movement of joined two parts: inner & outer rings.
